Application:
1.The equipment is batch type induction furnace, mainly used for sintering oftungsten carbide,carbide alloy,silicon carbide, boron carbide, polysilicon material, calcium carbide, Rare earth oxide,diamond,radiation proof material,zirconia,sapphire, metal, billets, powder metallurgy, gemstone, rhenium material, Nd2Fe14B, Neodymium magnet,boron nitrogen,vanadium carbide powder and such as metal powder and composite metal powder.
2.Configuration:
380V±5%，50Hz/60Hz 3 phase 5 wire
One control cabinet to one furnace and optional for one to two type or one to four type.
The facility equipped of cooling tower or gas purifier for optional.
3.Technology parameter:
|
Model Parameter |
Lab usage |
Production usage |
|||||
|
NTI-SJL-54W |
NTI-SJL-98W |
NTI-SJL-300W |
NTI-SJL-400W |
NTI-SJL-1280W |
NTI-SJL-1620W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
800×800×2000 |
900×900×2000 |
|
Heating type |
/ |
IF induction heating |
|||||
|
Crucible |
/ |
Graphite |
|||||
|
Control type |
/ |
Thyristor control or IGBT control ( optional ) |
|||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
1280 |
1620 |
|
Loading weight |
g |
HT zone capacity × density (g/cm³)×1000 Remark：1L=1000cm³ |
|||||
|
Ultimate vacuum |
Pa |
20 |
|||||
|
IF power |
Kw |
120 |
160 |
200 |
250 |
400 |
600 |
|
Max. working temperature |
℃ |
2500 |
2500 |
2500 |
2500 |
2500 |
2500 |
|
Usual working temperature |
℃ |
2400 |
2400 |
2400 |
2400 |
2400 |
2400 |
|
Temperature unifomity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Overall dimension |
mm |
|
|
|
|
|
|
|
Weight |
Kg |
|
|
|
|
|
|
|
Working environment |
/ |
Vacuum or Argon atmosphere protection( micro positive pressure) |
|||||
You can customize it as per your real requirement.

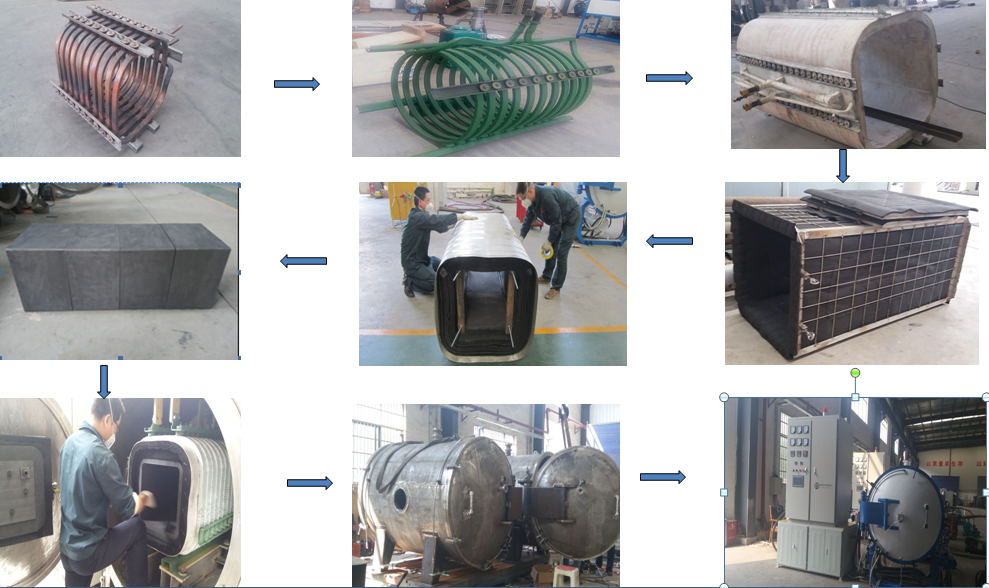

Production procedure

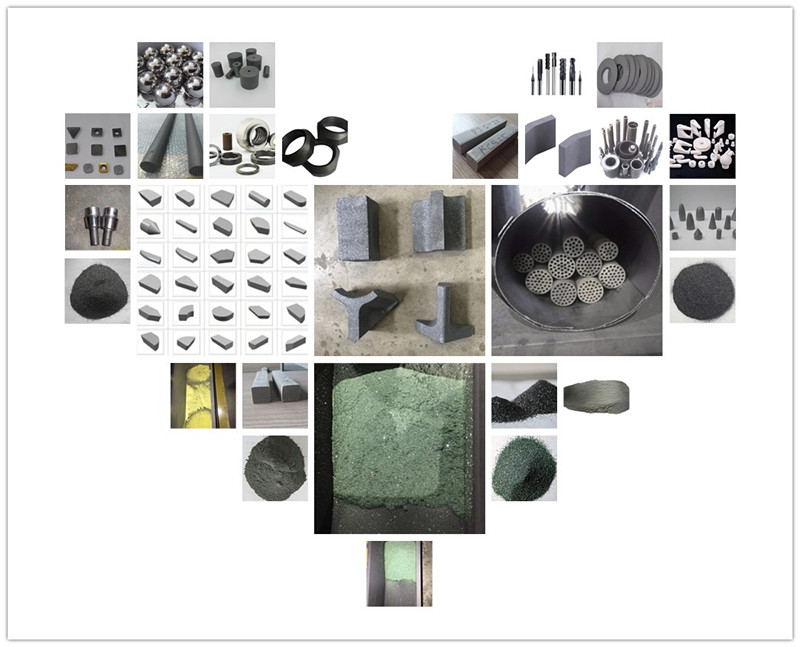

Raw material suitable for heating
